FULL LED tail light assembly

09-14 Ford F150 Smoked Red Halo LED Tail Lights Assembly With Sequential Turn Signal

~~$799.00~~ $479.00 Save 40%

Tax included. Shipping included.

5.0

Style: with Tailgate

with Tailgate without Tailgate

Product variants

16 in stock, ready to ship

Quantity

✅ FITMENT CONFIRMED:

FITS: 2009–2014 Ford F-150 (Crew Cab Pickup) — All Trims (XL, STX, XLT, FX4, Lariat, King Ranch, Platinum, Limited) Replaces OEM: BL3Z-13405-A LH / BL3Z-13404-A RH Replaces OEM: Partslink FO2800210, FO2801210

Payment

🔧 Installation Support View the step-by-step guide for this kit:
Read: 2009-2014 Ford F150

30-day Return

Take advantage of a 30-day trial and make the most informed decision possible.

2-year Warranty

Our warranty covers defects in materials, so you can feel confident that.

Professional Installation

Company, we believe that professional installation is key.

Free Shipping

California warehouse and shipped via Fedex Fast Delivery.

Designed to match factory lines for a seamless look.

OEM-Style Fitment

The Ultimate Rear-End Evolution.

Sequential LED Tail Lights

Reliable performance for everyday roads.

Built for Longevity

SAE/DOT Compliant

IP67 Certified

True Plug & Play

Instant LED Response

2-YearWarranty Included

Zero Error CodesBuilt-in CANBUS

Free ShippingShips in 48hrs · CA

Tailgate Light BarSmoked Red Sequential

Designed for 2009–2014 Ford F-150 Crew Cab Pickup. Fits XL, STX, XLT, FX4, Lariat, King Ranch, Platinum, and Limited trims. Verify tail light shape before ordering if your truck is not Crew Cab.

Description

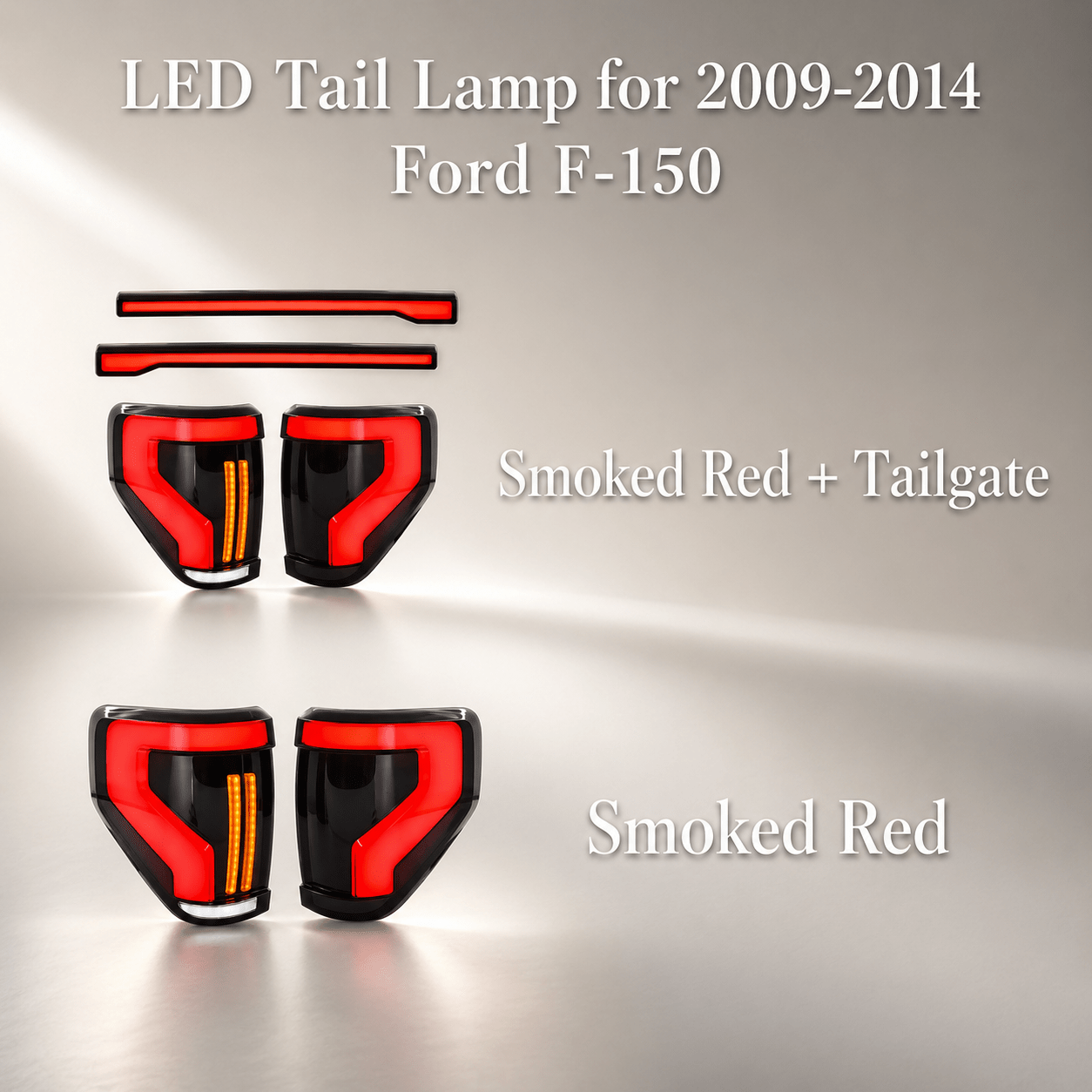

Smoked Red LED Tail Lights With Tailgate Light Bar for 2009–2014 Ford F-150

Complete pair (driver + passenger side) with center tailgate light bar, smoked red lens, sequential turn signal, instant LED response, and plug-and-play wiring.

Upgrade your F-150 rear end with a sharper smoked red LED signature that is easier to recognize than aging factory tail lights. Built-in CANBUS support helps prevent dashboard error codes and hyper-flash.

LED brake lights respond instantly to help the driver behind you react sooner. Bright 6000K reverse lighting improves rear visibility when backing up at night, in rain, or around work sites.

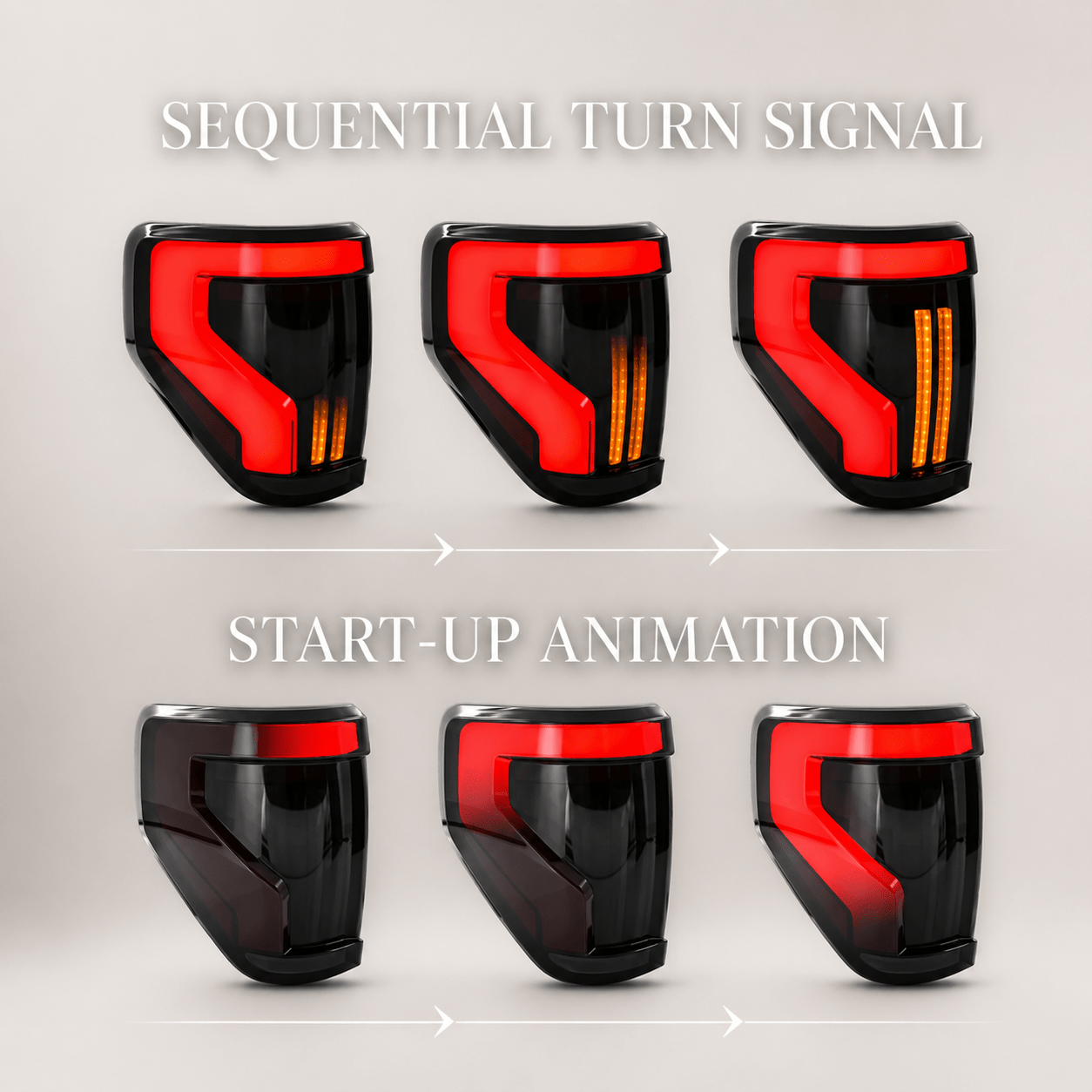

Sequential amber turn signals create a clear flowing direction indicator, while the red running light outline and center tailgate light bar give the truck a wider, more modern rear profile.

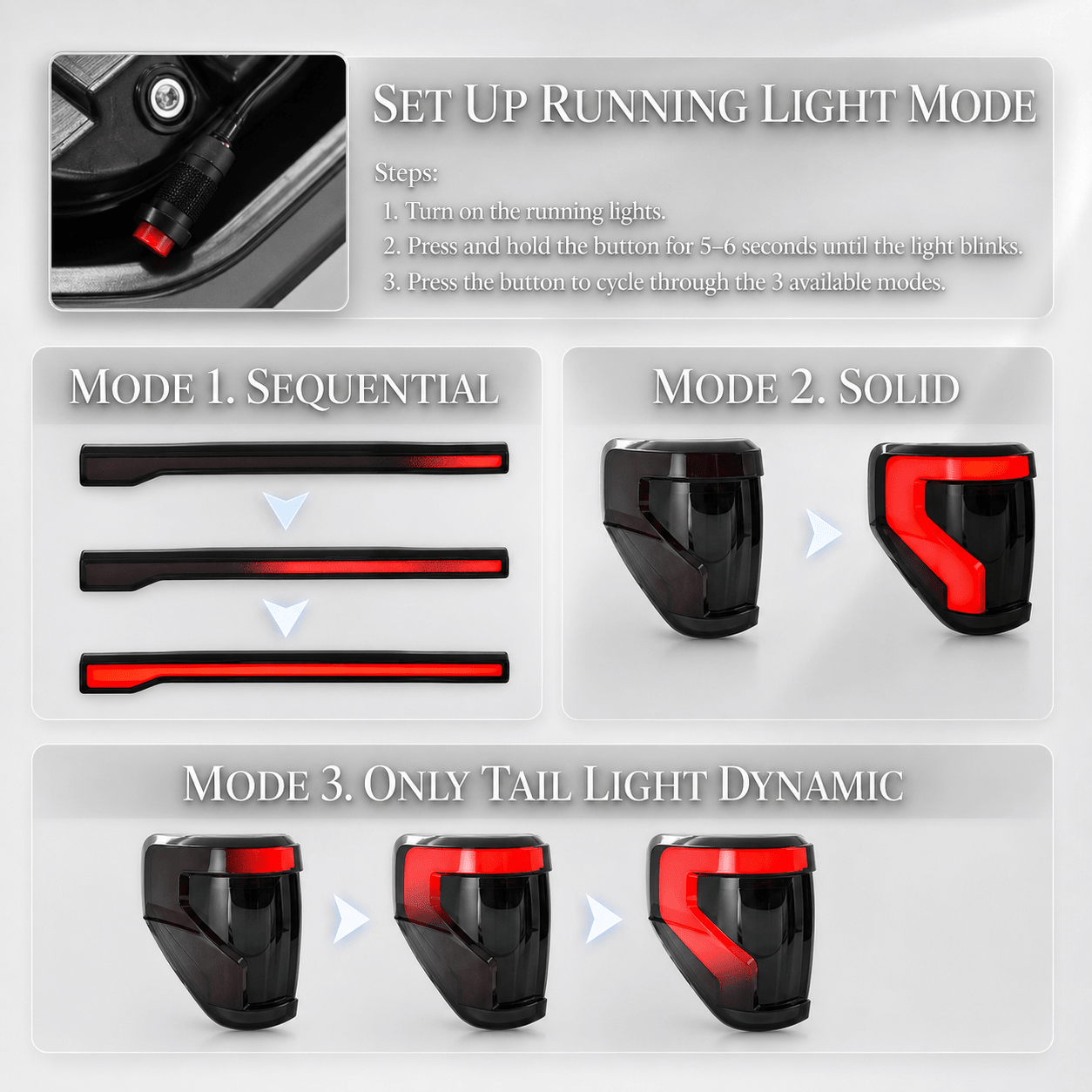

Start-up animation adds a premium lighting sequence when the system activates, giving the truck a clean custom look without changing factory body lines.

At a Glance

Full LED

Rear Lighting System

running · brake · turn · reverse · tailgate bar

35W

Power Output

12V vehicle system

IP67

Waterproof Rating

Sealed · submersion-tested

2 yr

Warranty

LED · moisture · housing

Features & Benefits

Built for a Cleaner F-150 Rear-End Upgrade

Instant LED Brake Light — helps trailing drivers react faster with immediate LED activation and strong red output.

Bright 6000K Reverse Light — makes nighttime backing clearer with crisp white LED illumination.

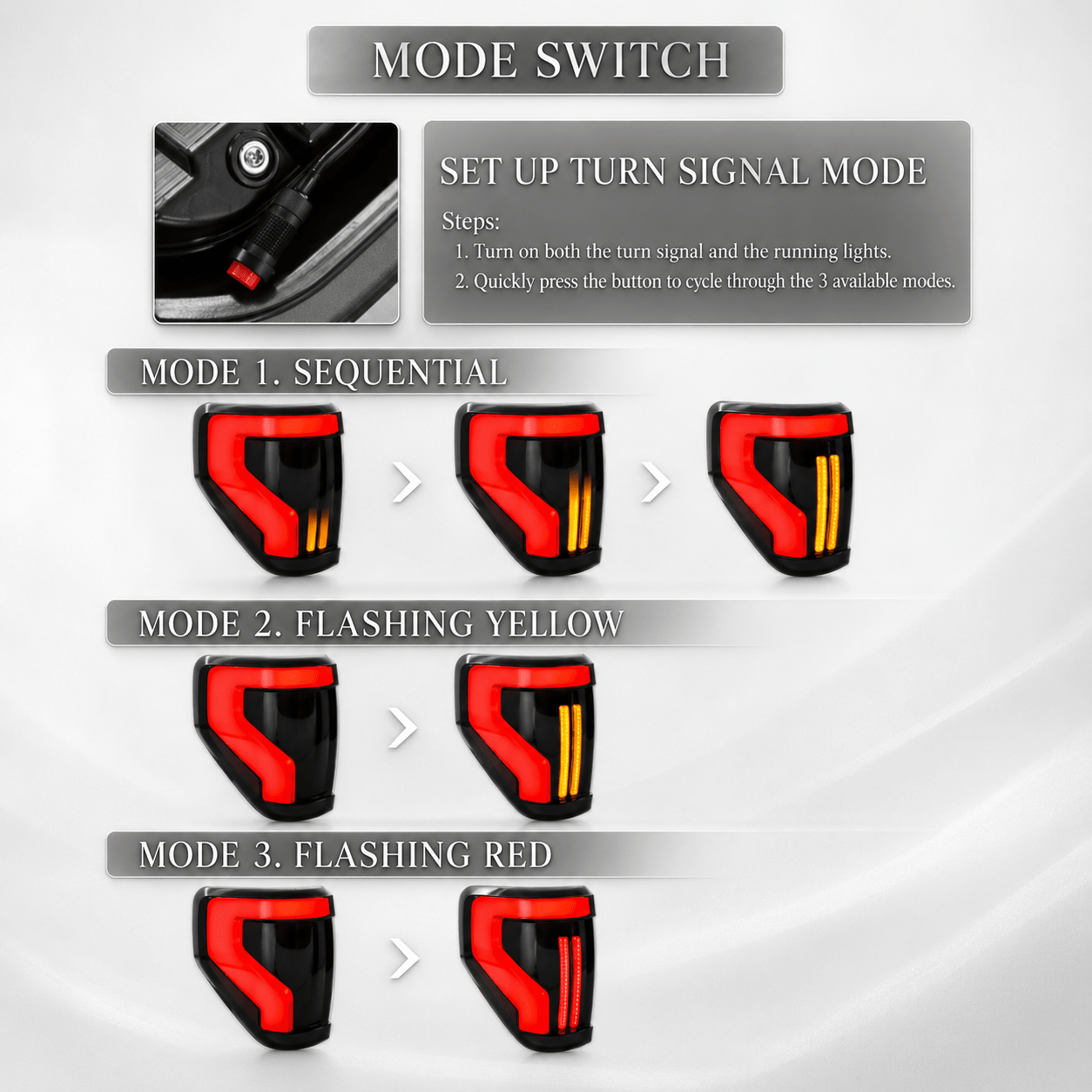

Sequential Amber Turn Signal — shows lane-change intent more clearly with a smooth flowing amber animation.

Center Tailgate Light Bar — widens the rear lighting signature and completes the custom F-150 look across the tailgate.

Smoked Red Lens Finish — adds a darker custom appearance while keeping brake, turn, running, and reverse functions clearly separated.

Zero error codes — Drive without worrying about dashboard warning lights or hyper-flash. Built-in CANBUS decoder is compatible with all 2009–2014 Ford F-150 Crew Cab factory wiring configurations.

IP67 waterproof — built for rain, washing, dust, and daily truck use. Sealed housing helps reduce moisture intrusion and condensation risk..

2-year warranty — Full coverage against LED failure, moisture ingress, and housing defects. Ships free from California, typically delivered in 2–4 business days.

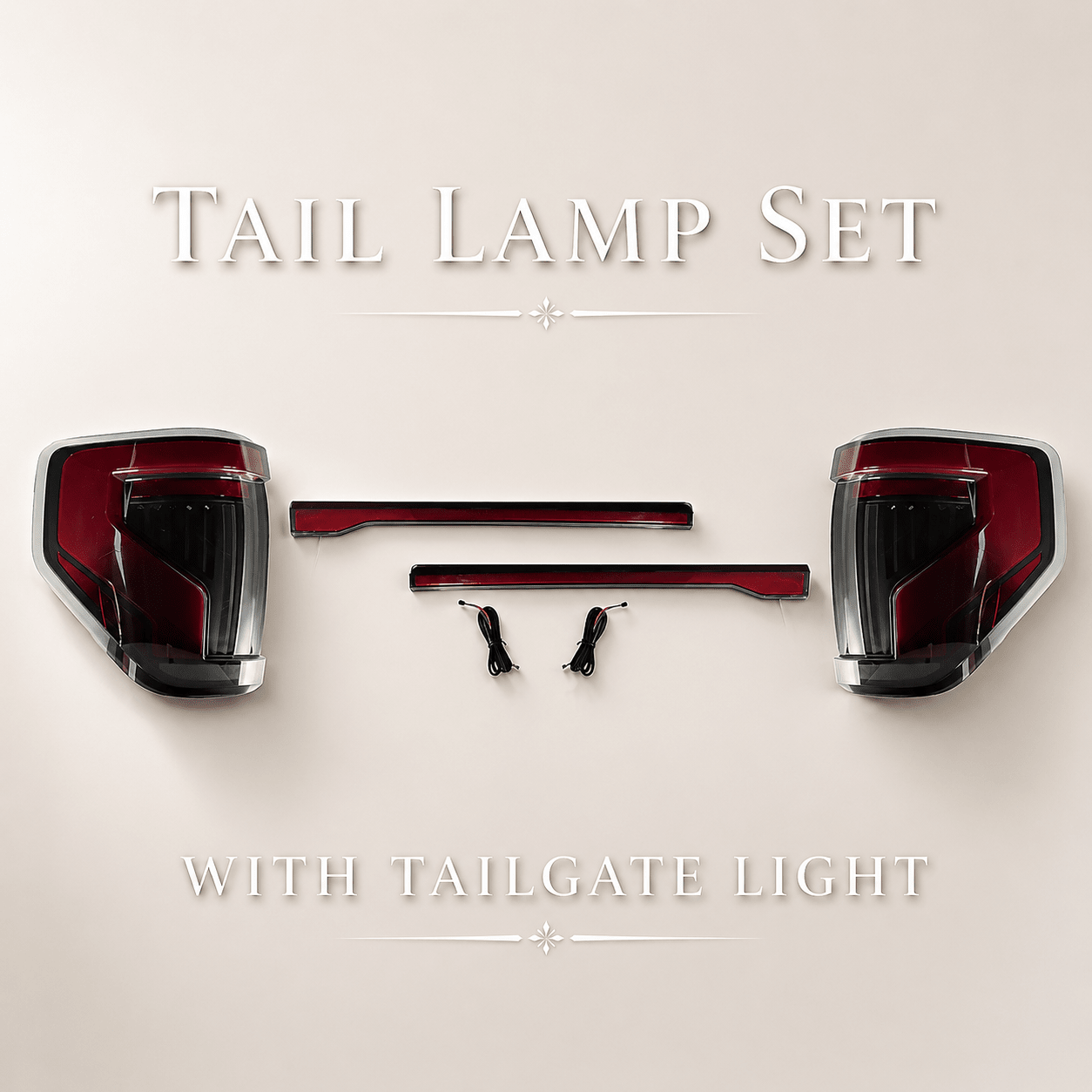

What's Included

Everything in the Box

×1

Driver-side LED tail light

Smoked red lens · plug-and-play connector

×1

Passenger-side LED tail light

Smoked red lens · plug-and-play connector

×2

Tailgate light bar + wiring accessories

Center tailgate light bar with clips, plugs, and adhesive promoter pads

×1

Installation manual & warranty card

English · step-by-step with photos

×1

Mounting hardware kit

Clips, plugs, wiring connectors, and installation accessories

Ships as a complete pair (driver + passenger side). Free shipping on all orders — delivered via FedEx from our California warehouse in 2–4 business days.
Tools needed: 10mm socket, trim tool, flathead screwdriver, clean microfiber towel. No cutting or drilling required.
Returns: 30-day returns — if it does not fit, contact us before installation and we will help resolve it.

More Details

Does It Fit?

Check your year & model →

Full Specs

Every measurement →

How to Install

Step-by-step guide →

Guaranteed Fitment

Engineered to match factory mounting points and OE-style connector positions. Plug-in installation with no cutting or rewiring.

Year

Make / Model

Status

2009–2014

Ford F-150 Crew Cab Pickup — XL / STX / XLT / FX4

Direct Fit

2009–2014

Ford F-150 Crew Cab Pickup — Lariat / King Ranch

Direct Fit

2009–2014

Ford F-150 Crew Cab Pickup — Platinum / Limited

Direct Fit

Replaces OEM part number(s): BL3Z-13405-A LH, BL3Z-13404-A RH; Partslink FO2800210, FO2801210

Installation note: Tailgate light bar installation requires cleaning the tailgate surface before mounting. Test all lights before final reassembly.

Confirmed for 2009–2014 Ford F-150 Crew Cab Pickup in XL, STX, XLT, FX4, Lariat, King Ranch, Platinum, and Limited trims. Not sure if this fits your specific build? Email support@prismbeam.com — we'll confirm fitment before you order.

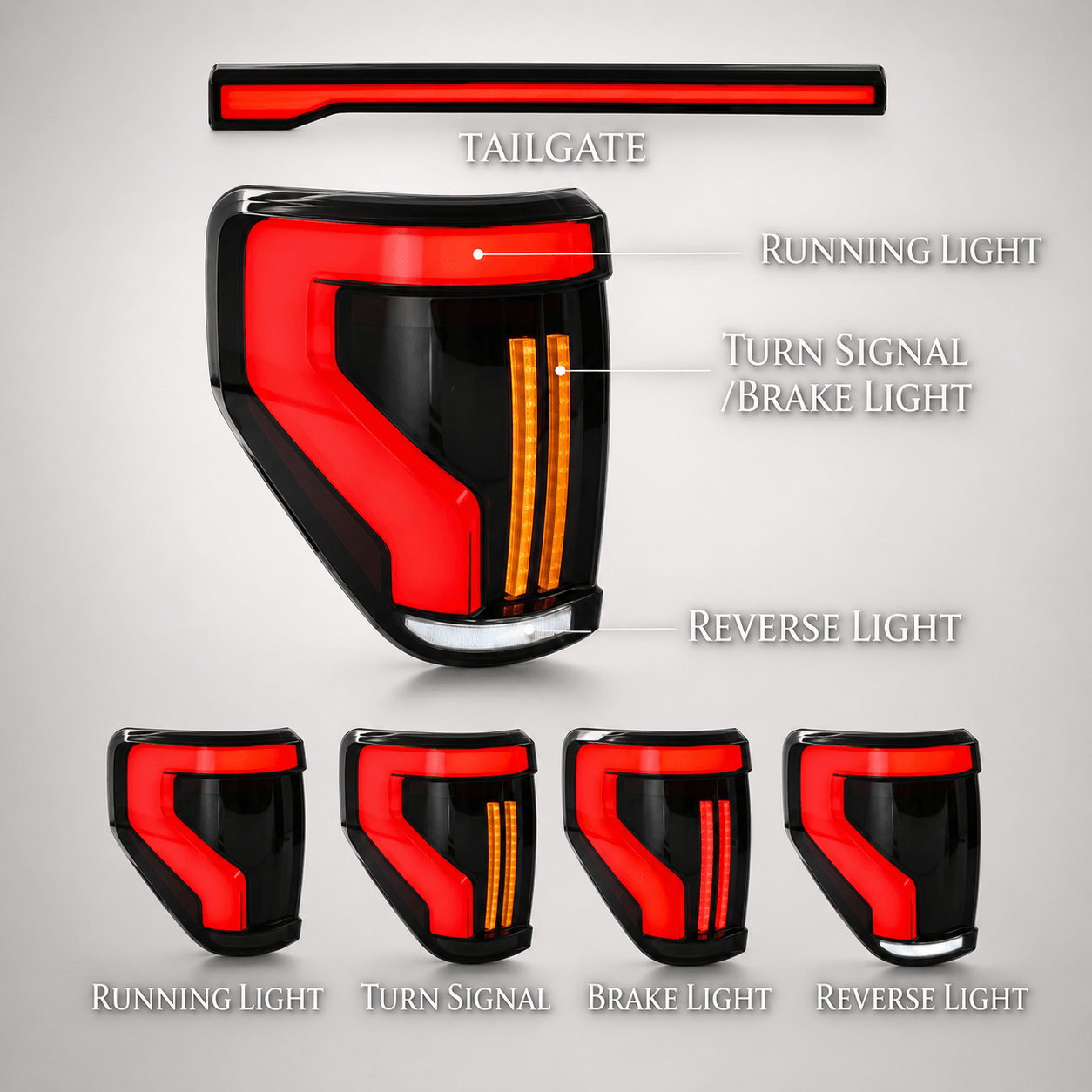

Technical Specifications

Full technical data for SKU FQSR-17717482201 · Driver + Passenger pair

SKU FQSR-17717482201

Brake Light LED / Red

Reverse Light LED / 6000K White

Turn Signal Sequential LED / Amber

Running Light LED / Red halo outline + tailgate light bar

LED Chip Integrated LED array

Color Temp 6000K (reverse light)

Brightness N/A lm

Voltage 12V DC

Housing ABS housing with smoked red lens

Lens Smoked Red

Waterproof IP67

CANBUS Built-in · hyper-flash free

Weight (pair) Not listed

Connector OE-style plug-and-play connector

Box Dimensions Not listed

Controller Integrated sequential controller

Warranty 2 years

Plug-In Installation

No cutting, no splicing, no trips to the shop — everything you need is already in the box.

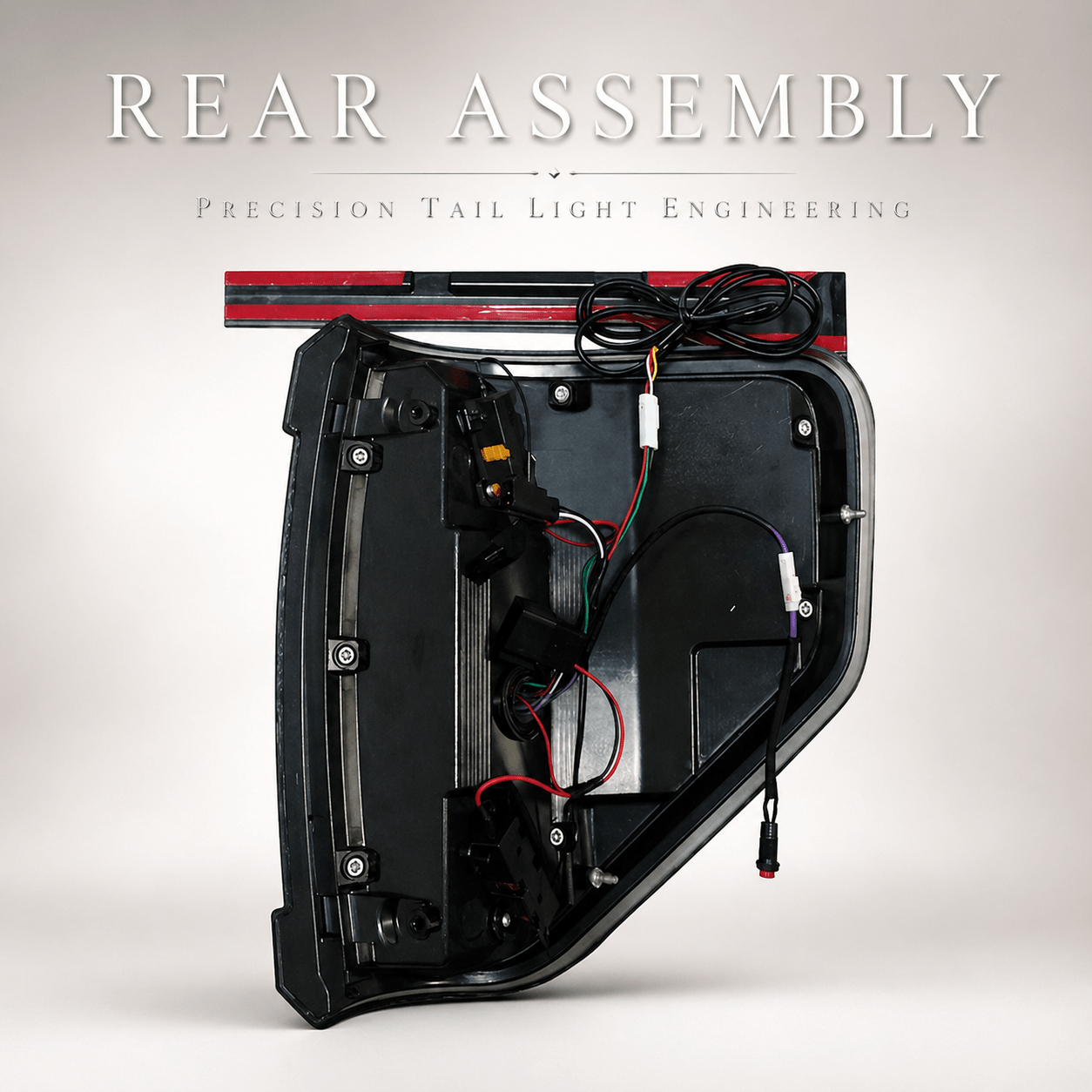

Direct OEM Connector — Plug & Play

The pigtail harness matches your factory socket exactly. No wiring changes needed. Use the included connector layout for brake, running, reverse, turn signal, and tailgate light wiring.

● Brake Signal ● Reverse Signal ● Turn Signal ● Running Light ● Ground

Before you start: Clean the tailgate surface before mounting the light bar. Route wiring away from sharp edges and moving parts.

Step-by-Step

Remove the factory tail lights

Open the tailgate, remove the factory fasteners, unplug the OE harness, and pull the original tail light assemblies out carefully.

Connect the new LED assemblies

Plug the new driver and passenger tail lights into the factory connectors. Do not cut or splice the factory wiring.

Test every function before final mounting

Check running light, brake light, reverse light, and sequential turn signal on both sides before tightening the assemblies.

Install the tailgate light bar

Clean the mounting surface, apply the adhesion promoter, route the wiring, and secure the tailgate light bar with the included clips and plugs.

Seat the housing and verify the seal

Tighten the mounting points evenly, confirm the gasket is fully seated, and recheck all lighting functions.

Important: Verify the seal before driving. After installation, press firmly around the entire perimeter gasket to ensure full contact with the body panel. Any gap can allow water to enter during rain or car washes, leading to condensation inside the housing and voiding your warranty. If you notice fogging after the first wash, remove the light and reseat the gasket immediately.

Need help? Our install team is standing by — email support@prismbeam.com with a photo of your wiring and we'll guide you through it, at no charge.

Frequently Asked Questions

Please read our frequently asked questions to find out more.

Are these tail lights street legal?

Absolutely. All PrismBeam lighting products are SAE/DOT compliant, meeting all US safety standards for road use.

Will these cause a hyper-flash on my turn signals?

No. We include high-capacity load resistors built-in to ensure a steady, factory-like blink rate.

How long does installation take?

Most users complete the install in 30-45 minutes using basic hand tools. They use the factory mounting points and electrical connectors — no modifications needed.

What's included in the box?

One pair of tail lights (left + right), all mounting hardware, and plug-and-play wiring connectors.

What if they don't fit or arrive damaged?
